Equipment 2.650 MM - ref. 238

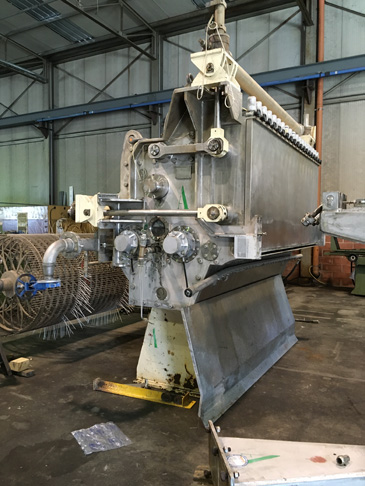

N. 1 HEADBOX
Manufacturer: Over
Year: 2002
Pneumatic: type
Width: 2.850 mm
Trimmed wudth: 2.650 mm
Capacity: min 12.000 max 15.000 lt
Complete stainless steel AISI 316
N. 2 feedinfg rolls
Diameter: 175 mm
Grammage: from 200 to 700 gr/m2
Speed: 350 mt/l'

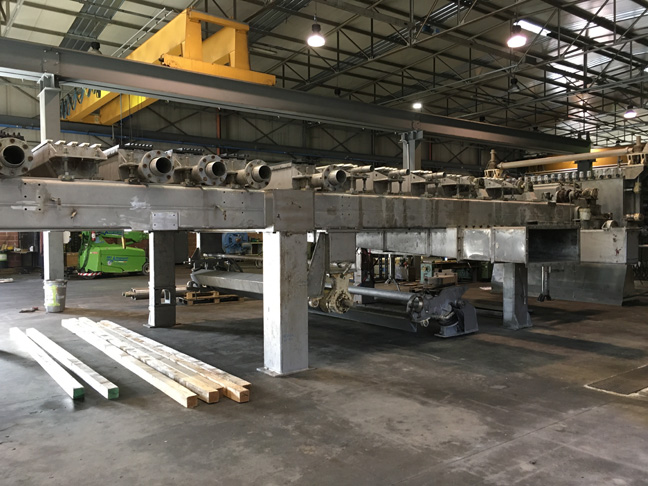

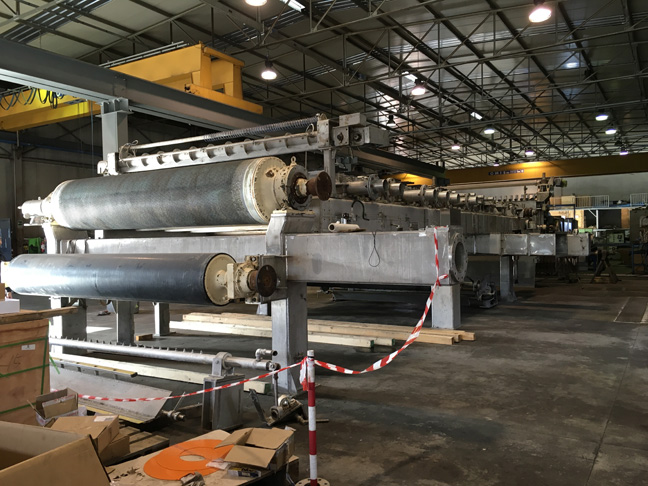

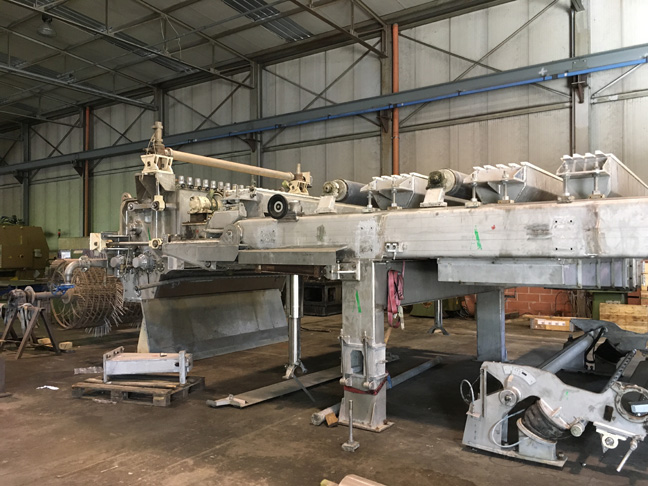

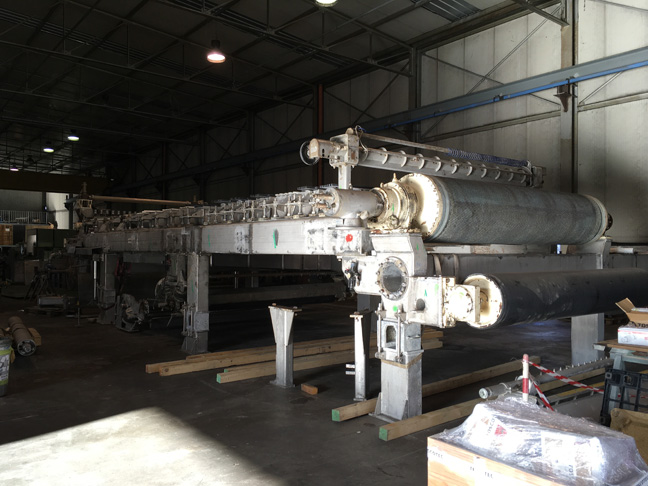

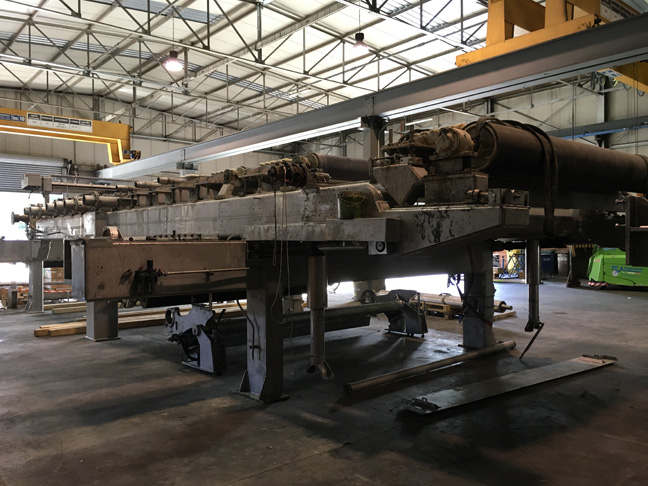

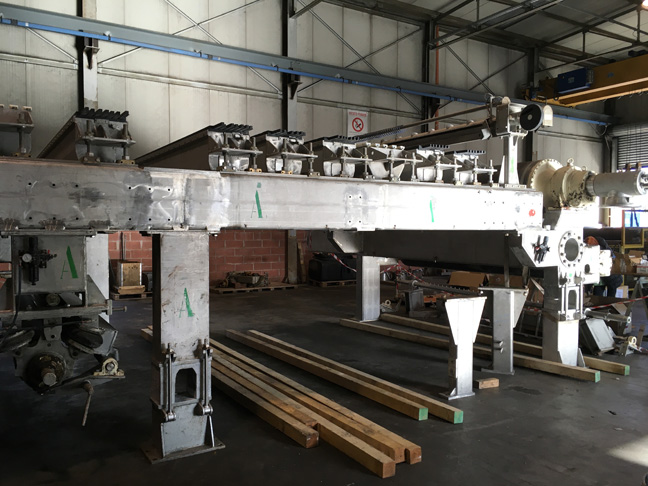

N. 1 WIRE SECTION
Manufacturer: Over
Year: 2002
Width: 2.900 mm
Cantylever type
Complete stailess steel AISI and 304
With head roll
Forming board
Foils and vacuum foils
Suction boxes
Lenght: 10.700 mm, between head roll and suction
Lenght of the wire: 26 mt
N. 2 Cantilver
Speed: 350 mt/l'
Detailed desciption of the wire section

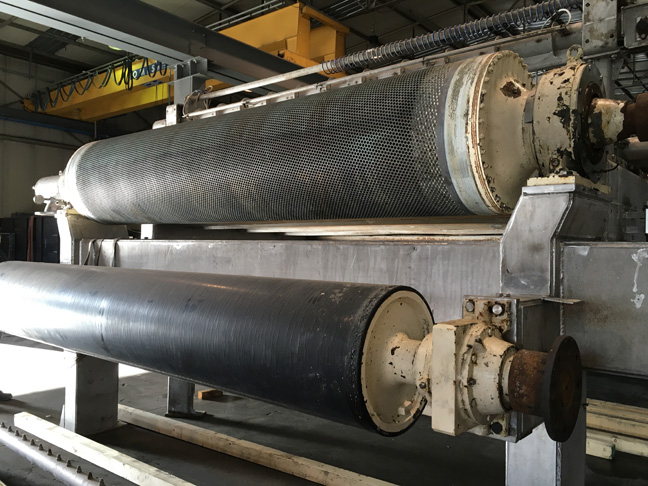

N. 1 Head roll stainless steel
Diameter: 307 mm
Width: 3.000 mm
Rubber covered
Hardness: 0-2 PJ
N.4 Guiderolls stainless steel
Diameter: 307 mm
Width: 3.000 mm
Rubber covered
Hardness: 0-2 PJ
Stainless steel supports
N.5 Scrapers for guiderools
Stainless steel supports AISI 304 with blade holder stainless steel AISI 304
N.1 Tensiometer Wire roll
Mechanical type
N.1 Manual regulation wire roll
N.1 Regulation voltage unit for wire
N.1 Wiresection stainless steel AISI 304
Recordable position vertically and horizontally
N.5 Hydrofoils with 5 blades
Stainless steel AISI 304 boxes
Stainless steel supports
N.3 Vaccum foils with 5 blades
N.6 Suction boxes
N.2 Dropping rolls
Diameter: 1900 mm
Rubber covered with supports
Sprayers
Stainless steel complete with supports
N.1 Sprayers cleaning wire
N.1 Swinging sprayers high pressure
N.2 Trim blast chiller sprayers
N.4 Nozzles trimmer
N.5 Sprayers for guide rolls and head roll
Bearing strcture cantilver type
Composed with:
N.2 Longitudinal bearing beams
Stainless steel AISI 304
N.2 Transversal bearing beams
Stainless steel AISI 304 for cantilever
N.1 Tail cutter
N.1 Suction rool
Diameter: 660 mm
Width: 2.800 mm perforated
Total width: 3.200 mm
Bronze cover - Diameter holes: 8 mm
Pressure 30 Kn/M.
Cast iron supports
Internal box stainless steel AISI 304
Aspiration unit stainless steel
N.1 Drive wire roll
Diameter: 470 mm
Width: 3000 mm
Covered stainless steel
N.1 Shaker
N.1 CALENDAR
Composed with 2 cast iron shell rools
Inferior rools - diameter: 450 mm
Superior rools – diameter: 500 mm
Load: 80 kg/cm
N.1 PRIMARY VERTICAL SCREEN
Manufacturer: Maule
Type EC5 - Medium density
Slots baskets diameter: 0,2 mm
Technical details:
Power: 45-50 T/24hr
Max capacity: 1340 lt/1'
Consistency: 3,5 %
Basket: slots diameter: 0,2 mm
Diameter basket: 530 mm
Inlet pressure: 2 bar
Outlet pressure: 1,6 bar
Pressure drop: 4 bar
Power motor: 45 kw
Composed with:
-Stainless steel AISI 304 body
-Stainless steel AISI 304 rotor
-Perforated basket stainless steel AISI 304, slots diameter: 0,2 mm
-Stainless 38NCD4 drive tree
-Control with belts and pulleys
N.1 THICK PULP SCREEN
Manufacturer: Maule
Technical details:
Capacity: 800 lt/1'
Density: 4,8%
Drop pressure: 15 mCA
Composed with:
-Stainless steel header
-First cone of separation in stainless steel
-Second cone of separation in plexiglass
-Waste collection container in cast iron
