Paper Machine mt. 2.80 - Ref. 236
Paper Machine: BELOIT Coated Wood free
Final paper gsm: 40 - 160
Base paoper gsm: 30 - 110
max width: 280 cm
Year Efficency: 93%
Max speed 730 mpm
Approach: 4 stage cleaners; 3 stage screen slot 0,25 mm+diluition screen
Headbox: Voith Module Jet
Wire width: 3500 mm (year 2016)
Press section: (2) press + offset

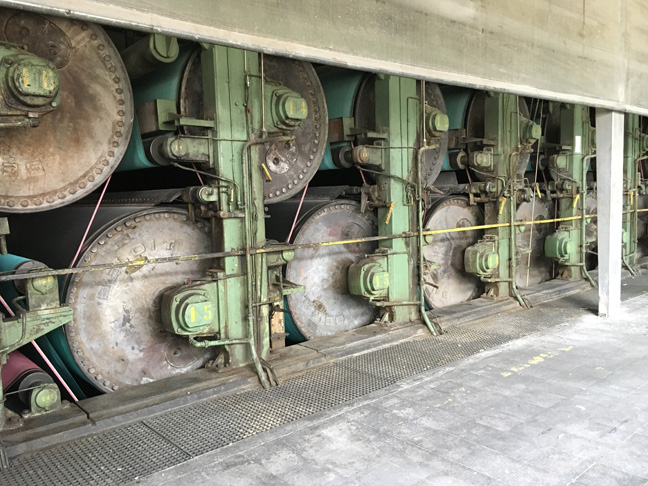

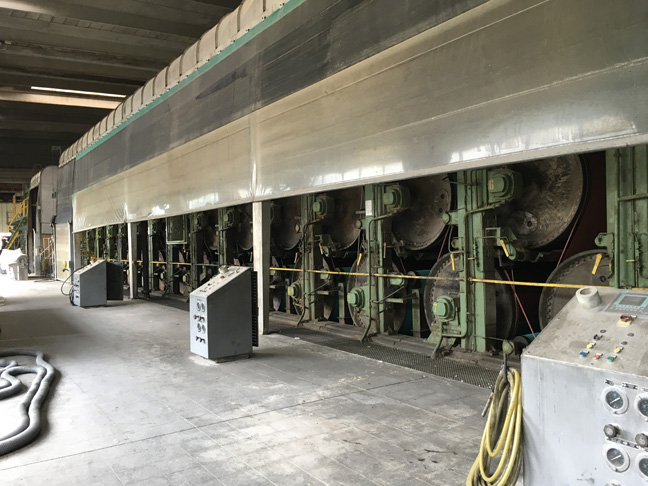

Pre drying section: Beloit type 4140 (4 group double fleted)
Steam pressure: 2,8 bar

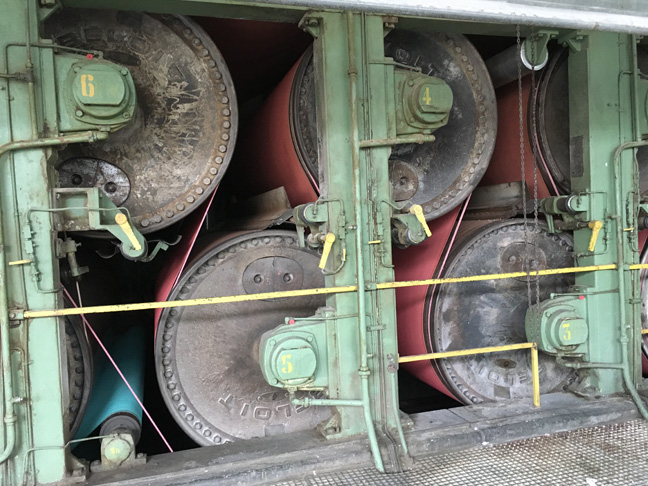

Number of dryier: 36
Dryier diameter: 1522 mm
Precoater Bill Blade: Speedsizer
Post drying section: (17) IR row; (1) aie dryier BMB + dryier
Kuster roll for hardnip calender
Pope reel: Centerwind (year 2017/18)
QCS AccuRay 1180
Rewinder:Jagenberg Width: 3 mt
