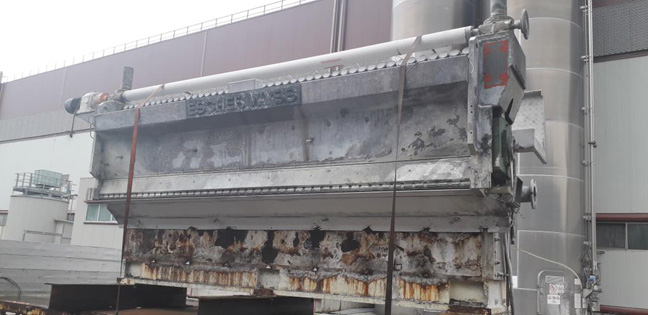

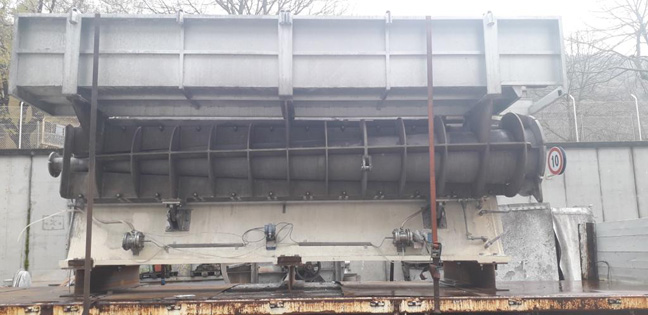

Headbox on sale
Manufacturer: Voith
Year 1993
Modified: 2005
Speed: 1100 mt/min
Substance: min. 40 max. 160 gr/M2
Width: 4900 mm
Portata: 70.000 lt/min
The type is 1105-08 (Voith), the machine has beenproduced with the following technic:
- Speed: 1000/1100 mt/l'
- Substance: min. 40 max 220
- Capacity: 6100 lt/l' min. 9000 lt/l' max
- Width: 4700 mm
- Width of the wire: 4900 mm
This headbox was finished in 1992, and has been produced for a spee of 1100 mt/min.
The speaker block originallyhad inserts with an entrance hole 9,5 mm
These inserts have been replced with inserts with entrance holes 11,5 mm is 58.000 lt/min (to slice)
The actual conical difuserin produced for a project scope of 66.000 lt/min.

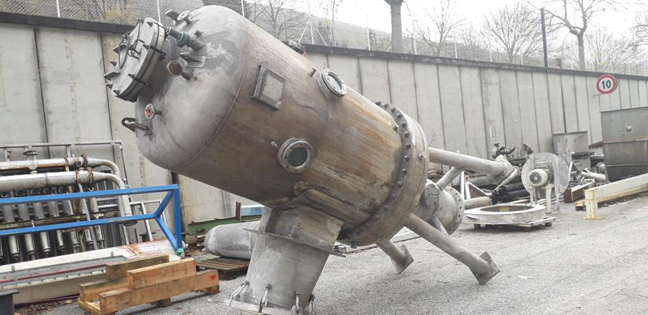

The actual damper reservoir 1450 mm is produced for a project speed of 68.000 lt/min.
In 2011 Voith replaced new diffusers 12,5 mm.
The headbox in this period was producing a capacity of 50.000 lt/l'.
In 2019 Voith has furnished the following elements:
- N° 1 Upgrde system jet commander
- N° 1 Profilmatic interface
- N° 1 Modukle step
- N° 1 VFN router
The headbox is complitely stainless steel.

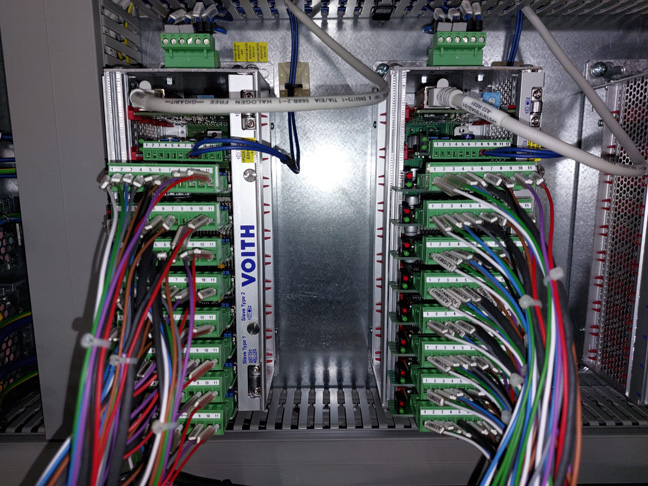

The eletrical panel of the headbox is new (installed in 2020) as you can check from the pictures.
Complete with technical drawing, manual instructions, eletrical panel.
Weight: 30/33 tons.
