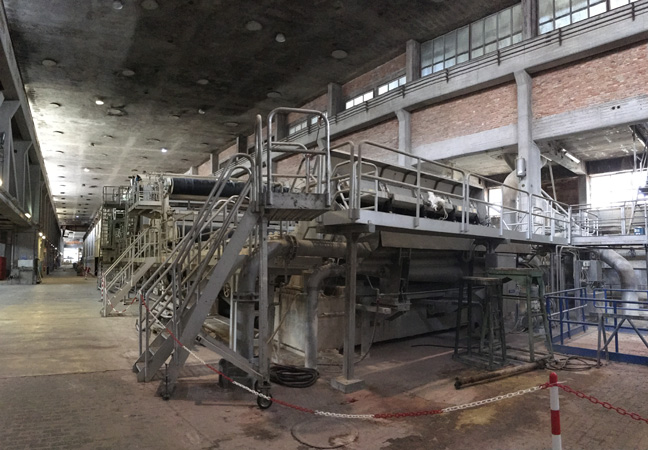

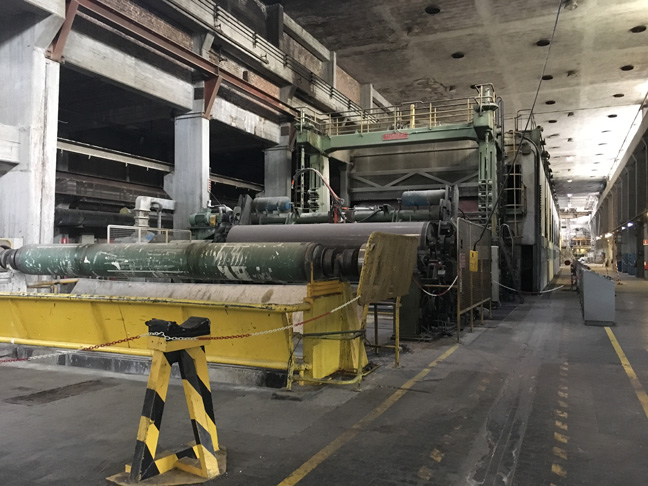

N.1 Paper Machine width 5400 mm - Ref.180
Year 1995
Manufacturer Valmet/Beloit
Modifications 2000 press covers, 2001 top former, 2007 headbox
Grade LWC offset, rotogravure
Substance min 40 gr/m2
Speed 100 mt/l'
Capacity 380 t/24 h
Ponside 5700 mm,min-max flow 33900-58700 lpm
Terimmed width 5400 mm
Headbox hydraulic masterjet Voith, type II F25/4 (2007) with automatic profile
Fourdrinier upgrade in a cantilever configuration, 4 new suction boxes Wire width 5900 mm

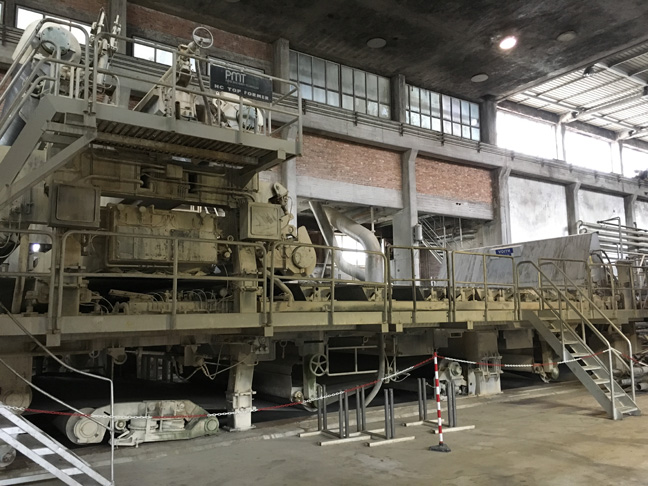

Top former HC former PMT (2001), improvement of vacuum system new AC drive for wet suction

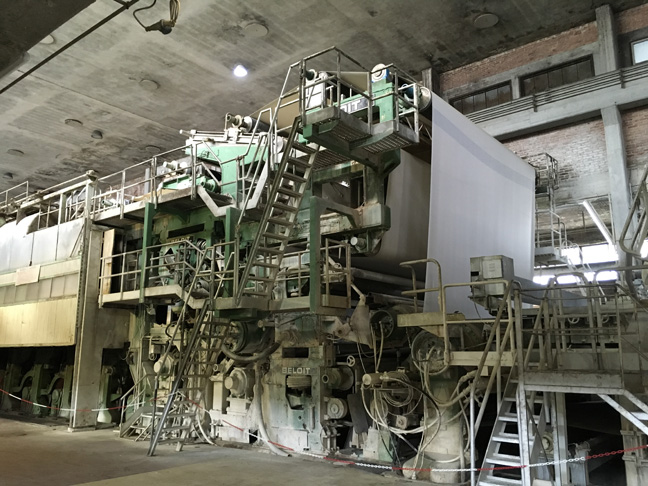

Press TRI NIP Beloit linear load 60/70/90 kg/cm, new cover for suction press (Polyast XT)
(2000)
Dryer 51 pre-dryers (6 section) + 1 refrigerator, 5 bar
Calender Hard nip
Hydraulic reel 1 coventional Valmet
PM Drive Siemens
N°2 Winders

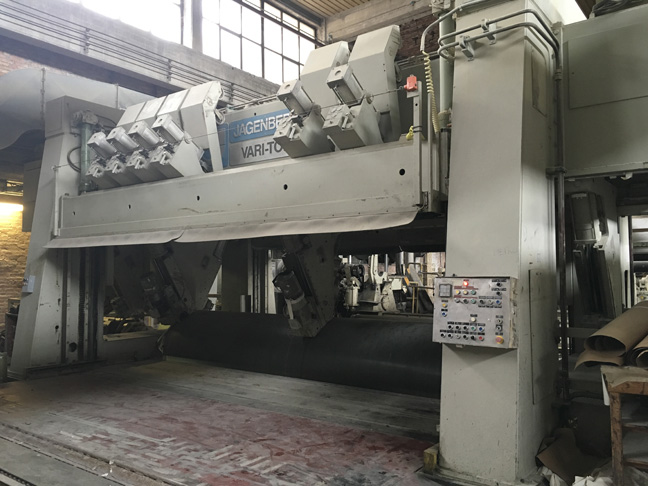

Jagenberg VARI TOP (1985)
Type 850-150
Configuration total winding station 6, n°2 heavy stations without central drive, n°2 new
Multidrive cover for central drum
Speed max 2200 mpm
Max unwind diameter 2500 mm
Max winding diameter 1550 mm

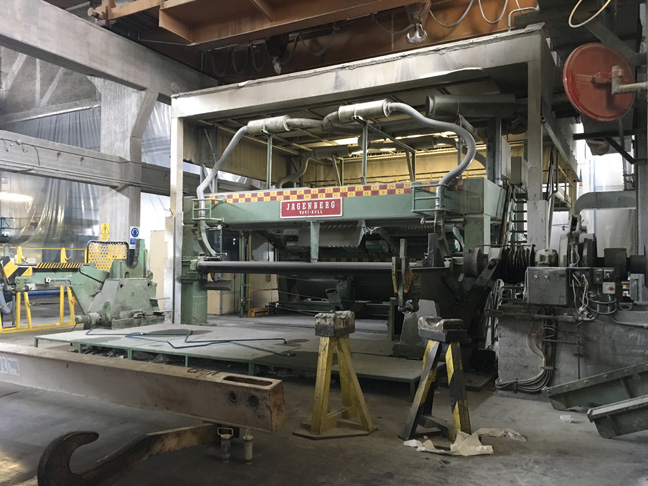

Jagenberg VARI ROLL
Jumbo roll diameter 2500 mm
Parent roll diameter 1500 mm
Speed max 2200 mpm
Winding stations 6
EQUIPMENTS INCLUDED:
-Electrical power panels
-Electrical cables
-Pipes necessary for operation Along with in general, all motors, drives, instrumentation,
electric cabinets, panels (Trafo, MCC and Power Center), pumps, valves, tanks, agitators,
walkways, all auxiliary equipment pertinent to the machines, all cables and pipes pertinent to
the machines all available spare parts, all metal scraps and technical documentation are
included. In particular included in the scope of the sale are:
• -n.3 totally oil transformers (n.1 10.000/380V capacity 3150 KVA for Nash vacuum pump; n.1
10000/380V capacity 2800 KVA auxiliary PM2; n.1 10000/525V capacity 2000KVA drying section)
including downstream systems (switches, cables, etc.)
• N.3 broke thickeners with pipes, instrumentation, etc.
• (n.1) Fan pump + 1 feeding cleaners pump +1 dilution fan pump, including the pipes downstream
of them
• N.1 Polidisk (machine line circuit) without sectors.
• From the pulsation attenuator to follow all the systems of the MC2 (headbox, forming table,
top former, press section, dryer, online calander, pope, measuring and control beams QCS
Honeywell, MX Open SSN5452 of 1995 (without sensor) NO screens and orizontal cleaners are
included.
PM DRIVE:
SIEMENS (partly DC and AC) - auxiliary (pumps, agitators....) are 400V but the drive is 500V.
Wire and Press sections are in AC, from dryer section to the reel in DC.
• Drives and motors available
• Under machine steel pulpers including agitators, pumps, pipes;
• Vacuum system including available vacuum pumps (2 CUTES CVP110L, 3 NASH 904T1 / T2,
CL4001);
• Hood ventilation system (fans, ducts, instruments, exchangers, etc.)
• Steam system (dryers and siphons included).
WINDER VARI TOP (Type: 850-150)
Along with in general, all motors, drives, instrumentation, electric cabinets, panels, pumps,
valves, n.1 trim suction plant including fans, separator, pulper, tanks, agitators, walkways,
all auxiliary equipment pertinent to the machines, all cables and pipes pertinent to the
machines all available spare parts, all metal scraps and technical documentation are
included.
Along with in general, all motors, drives, instrumentation, electric cabinets, panels, pumps,
valves, n.1 trim suction plant including fans, separator, pulper, tanks, agitators, walkways,
all auxiliary equipment pertinent to the machines, all cables and pipes pertinent to the
machines all available spare parts, all metal scraps and technical documentation are
included.
WINDER VARI ROLL
Along with in general, all motors, drives, instrumentation, electric cabinets, panels, pumps,
valves, walkways, all auxiliary equipment pertinent to the machines, all cables pertinent to the
machines all available spare parts, all metal scraps and technical documentation are
included.
Material stored:
-N.4 overhead cranes:
n.1 Ceretti and Tanfani 40/20 t (serial number TS-I-484; internal number 27)
n.1 OMIS 35000 kg (serial number TS-I-2354, internal number 89)
n.1 monorail OMIS-Demag 3000 kg (serial numer TS/2357/00 internal number 89A (busway and runways
excluded)
n.1 Ceretti e Tanfani 10.000 kg (serial number TS-I-794, internal number 15 (busway and runways
included)
- N.1 jumbo transfer trolley (Max capacity 40.000 kg, Max diameter 2900 mm, Speed 10 mpm)
-About N. 39 winding spool
-Spare parts: all available (main spare rolls in the attached document)
SPARE PARTS:
Currently present
